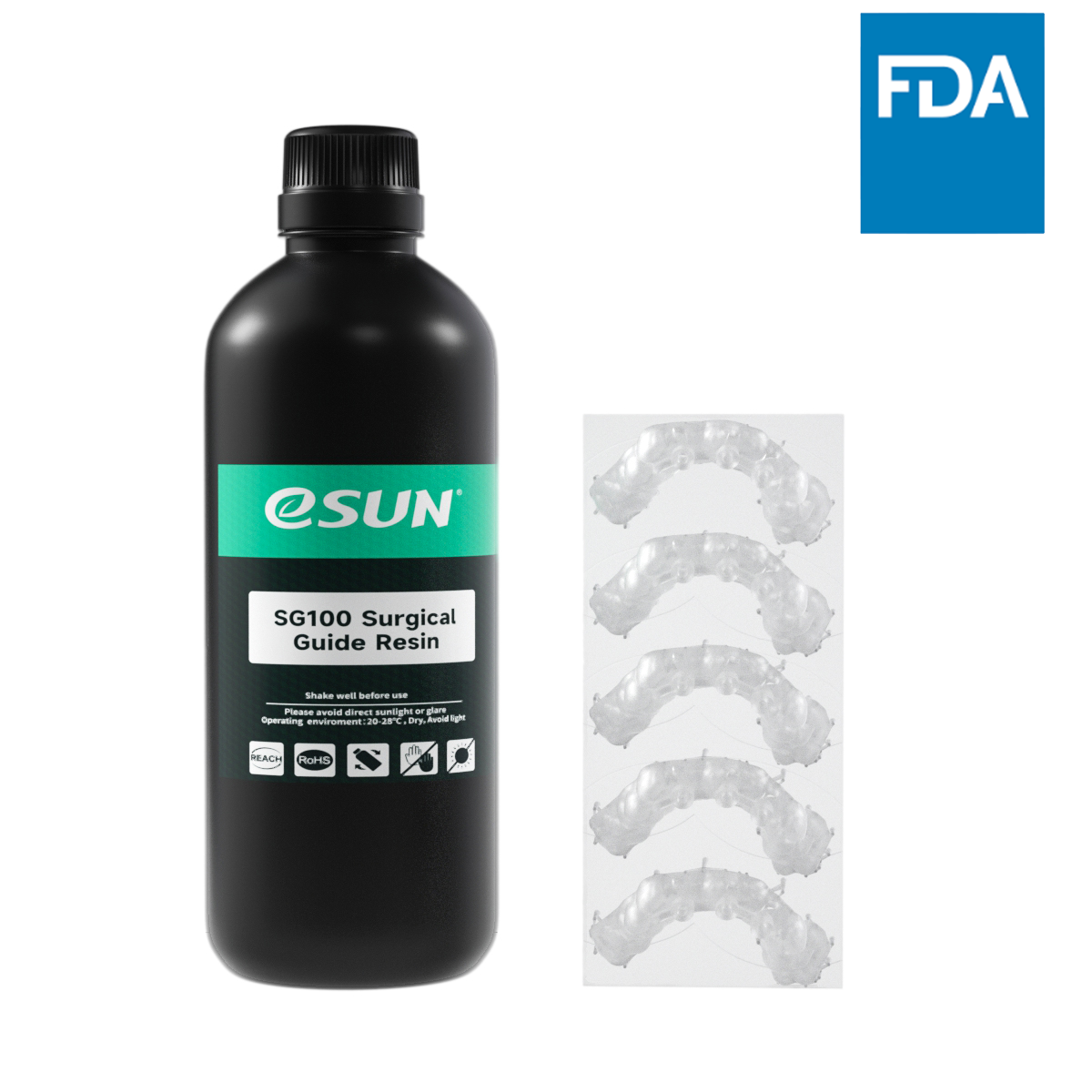

SG100 Surgical Guide Resin

SG100 Surgical Guide Resin


SG100 is a high strengh dental resin for 3D printed implant guides. The resin has high mechanical strengthness and stability to meet the requirements of guide materials. The printed models are easy to polish and have a low water sorption. The surface quality of the printed models is also excellent, with clear and transparent colours for easy observation of the oral cavity.


  • Clear and Transparent Color
  • High Mechanical Stability
  • Good Strength and Toughness
  • FDA-compliant Material


  • Oral Dentistry
  • Surgical Guide


Parameter Information
3D Printer Resin SG100 Surgical Guide Resin
Viscosity(mPa·s) 1000-1300
Density(g/cm3) 1.05-1.25
Tensile Strength(MPa) 47.02±10%
Tensile Modulus,MPa 561.78±10%
Elongation at Break(%) 28.4±10%
Flexural Strength(MPa) 52.84±10%
Flexural Modulus,MPa 1166.81±10%
IZOD Impact Strength(J/m) 266.93±10%
Water Abortion,% 0.4-0.8
Heat Distortion Temp(℃) /
Hardness(Shore D) 80~88
Strength 9
Toughness 800%
Speed 6
Accuracy 800%
Odor (the higher the score, the lower the odor, the better the experience) 9
